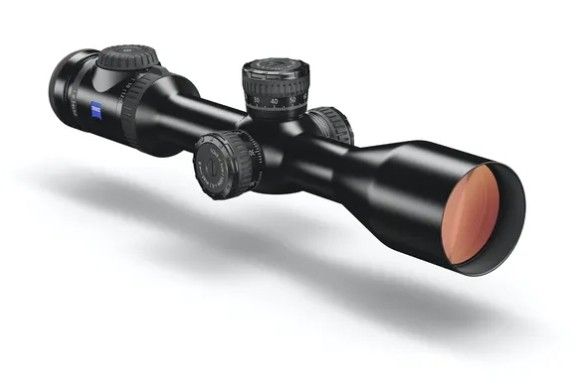

Zeiss Victory V8 2,8-20x56 ASV+
Allronuder nr 1 dette - 2,8-20 dekker det meste av all jakt og skyting man skal bedrive, det samtidig som 56mm objektiv sikrer høy lysgjennomgtrengning
Dette er modellen med ASV+ (kulebanekompensator)
Victory V8
Nå med 30mm mellomrør;)
Forstørrelse;2,8-20x56
Mellomrør : 30mm
Retikkel: 60 med lys
Utgangspupill: 9,8-2,8mmmm
Synsfelt på 100m: 15,5-2,1m
Justering: 1cm på 100m
lengde :350mm
Vekt: 830gram
Fra produsentens hjemmeside;
Equipped for everyday hunting: ZEISS V8 riflescopes deliver more successful moments on the hunt than any other riflescope from ZEISS thanks to the combination of sophisticated features and their perfect interaction. Outstanding optical quality, an extra-large eye box for fast target acquisition, and the finest illuminated dot in the world make it an unsurpassed companion in any hunting situation. For greater success during your hunt.
Plenty of reserves right down to the last bit of light – thanks to 92% transmission: the ZEISS V8 2.8-20x56’s reticle in the second image plane produces a consistently fine illuminated dot throughout the entire magnification range. The 20x magnification and optional bullet drop compensation also make it great for long-range shooting. Minimal subtension and increased accuracy that hunters can truly experience – even at long distances.
Light resources even at dusk
ZEISS has always been synonymous for bright, high-contrast optics. The modern and sophisticated optical designs enhanced by the ZEISS T* multi-coating enables our V8 riflescopes to achieve light transmission of up to 92%. The twilight capabilities are even further improved by the 56 mm objective lens providing the perfect solution for hunting in low light conditions – including darkness.
20x magnification
The 20× magnification makes this model an ideal choice for long-range shots. The optical system of the ZEISS V8 continues to impress the most discerning hunter. It provides consistently excellent image sharpness while yielding the highest resolution of details from minimum to maximum magnification settings. This allows for reliable target identification and precise shooting over longer distances.
The world’s finest illuminated dot
The secret behind the precision of ZEISS riflescopes is their ultra-fine illuminated dot and its extremely low target coverage. With only a fraction of the thickness of a human hair, the fibre optics system delivers the world’s finest illuminated dot – 3.3-millimetre target coverage at 100 metres is the breathtaking result (V8 & V6 @20x). Pure precision for the smallest targets and the greatest distances.
Detaljer
|
Magnification |
2.8 – 20 × |
|
Effective lens diameter |
27.5 – 56 mm |
|
Light transmission |
92% |
|
Exit pupil diameter |
9.9 – 2.8 mm |
|
Twilight factor |
7.9 – 33 |
|
Field of view at 100 m (yds) |
15.5 – 2.1 m (46 – 6 ft) |
|
Objective viewing angle |
8.8° – 1.2° |
|
Diopter adjustment range |
− 3.5 | + 2 dpt |
|
Eye relief |
92 mm (3.6 ") |
|
Parallax setting |
50 m – ∞ (54 yds – ∞) |
|
Vertical adjustment range at 100 m |
210 cm |
|
Lateral adjustment range at 100 m |
135 cm |
|
Adjustment per click at 100 m |
1 cm |
|
Centre tube diameter |
30 mm |
|
Eyepiece tube diameter |
46 mm |
|
Objective tube diameter |
62 mm |
Features
|
LotuTec | Nitrogen filled |
+ | + |
|
Water resistance |
400 mbar |
Physical
|
Operating temperature |
− 25°C | + 50°C (− 13°F | + 122°F) |
|
Length |
350 mm (13.8 ") |
|
Weight (without inner rail) |
795 g (28.0 oz) |
|
Weight (with inner rail) |
830 g (29.3 oz) |
