Zeiss LRP S5 525-56 ZF-MRi
Zeiss LRP S5 525-56 ZF-MRi
Kunne ikke laste inn hentetilgjengelighet
Ny modell fra Zeiss
Laget for langhold/PRS med helt korrekte spesifikasjoner, laget av skyttere for skyttere
5-25x56
Tekniske data
Mellomrør; 34mm
Retikkel:FFP ZF-MRi/16 med lys
Forstørrelse: 5-25
Objektivdiameter : 56mm
Lysgjennomtrengning:90%
Justeringsområde; 40,7MRAD på100m

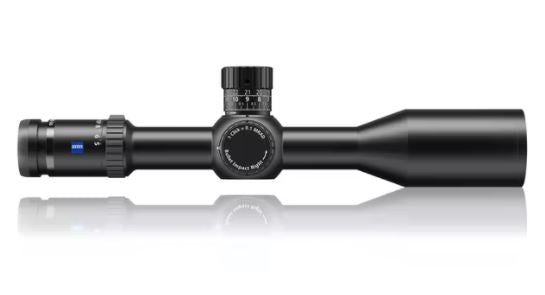

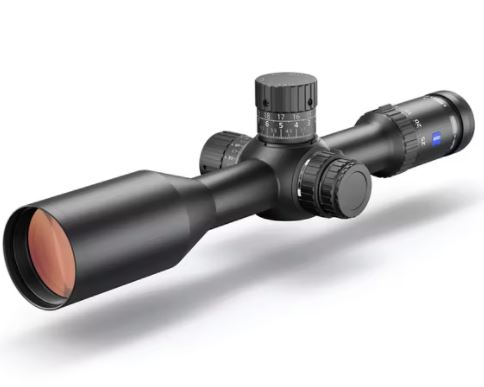

The ZEISS LRP S5 525-56 is a first focal plane riflescope with a 34 mm main tube, and provides a massive amount of total elevation travel out-of-the-box, which allows the shooter to engage targets to 1,500 yards | 1,375 meters - and beyond. When used in PRS and NRL type competitions, the riflescope will give you the edge to not just compete - but to win. This model is available in both Milliradian and Minute-of-Angle configurations.
It offers the most popular magnification range for precision rifle competitions, and is an exceptional choice on a variety of rifle platforms.
With a higher magnification setting, the ZEISS LRP S5 5-25x56 model is also ideal for other forms of target shooting, testing ammunition, load development and long-range hunting.
Best-in-class total elevation travel
A massive total elevation travel of 40.7 MRAD or 140 MOA allows the ZEISS LRP S5 to be more capable than your ammunition – and engage targets up to 1,500 yards and beyond out-of-the-box.
Daylight visible illuminated reticle
Digitally controlled diffractive reticle illumination technology delivers an exceptionally bright point of aim – regardless of the amount of incoming light – allowing you to confirm precise shot placement on target.
High-performance optics
Premium optical design with SCHOTT glass, fluoride lens elements and ZEISS T* coatings allows for optimum target identification, resolution of target and maximum light transmission of 90%.
ZEISS LRP S5

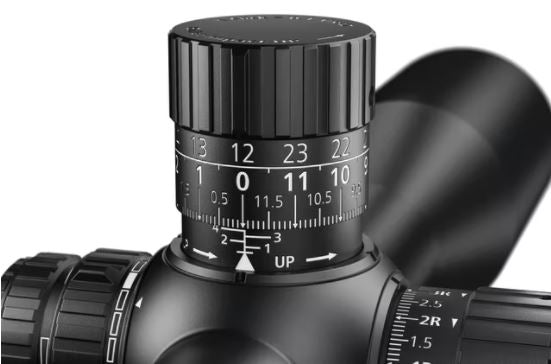

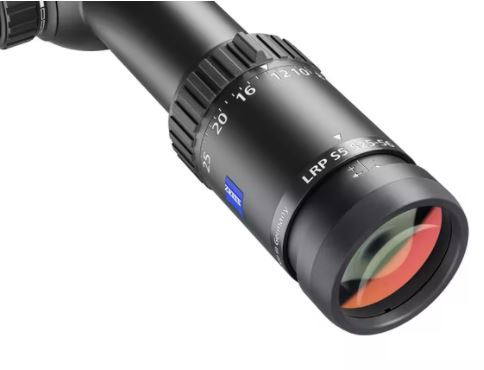

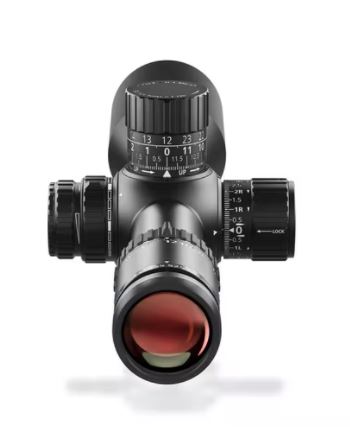

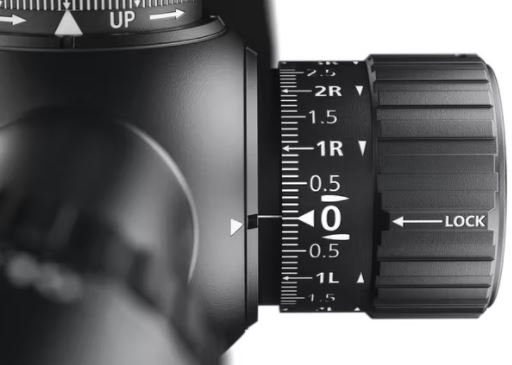

Your demands for excellent optics at PRS and NRL competitions are met with the all-new LRP S5. Both models utilize a 34 mm main tube, European-style fast-focus eyepiece, Ballistic Stop elevation turret (with 40.7 MRAD or 140 MOA of total elevation travel), and an external locking windage turret.
Detaljer
|
Magnification |
5 – 25 × |
|
Effective lens diameter |
56 mm |
|
Light transmission |
90% |
|
Exit pupil diameter |
9.2 – 2.4 mm |
|
Twilight factor |
16.7 – 37.4 |
|
Field of view at 100 m (yds) |
7.5 – 1.5 m (23 – 5 ft) |
|
Objective viewing angle |
4.3° – 0.8° |
|
Diopter adjustment range |
+ 2.0 | − 3.0 dpt |
|
Eye relief |
90 mm (3.54 ") |
|
Parallax setting |
25 m – ∞ (27 yds – ∞) |
|
Vertical adjustment range at 100 m |
40,7 MRAD | 140 MOA |
|
Lateral adjustment range at 100 m |
24 MRAD | 60 MOA |
|
Adjustment per click at 100 m |
0,1 MRAD | 0,25 MOA |
|
Centre tube diameter |
34 mm |
|
Eyepiece tube diameter |
46 mm |
|
Objective tube diameter |
62 mm |
Features
|
LotuTec | Nitrogen filled |
+ | + |
|
Water resistance |
400 mbar |
Physical
|
Operating temperature |
− 25°C | + 56°C (− 13°F | + 133°F) |
|
Length |
396 mm (15.6 ") |
|
Weight (without inner rail) |
1.030 g (36.3 oz) |
|
Weight (with inner rail) |
– |
