Zeiss DTI 6/20
Zeiss DTI 6/20

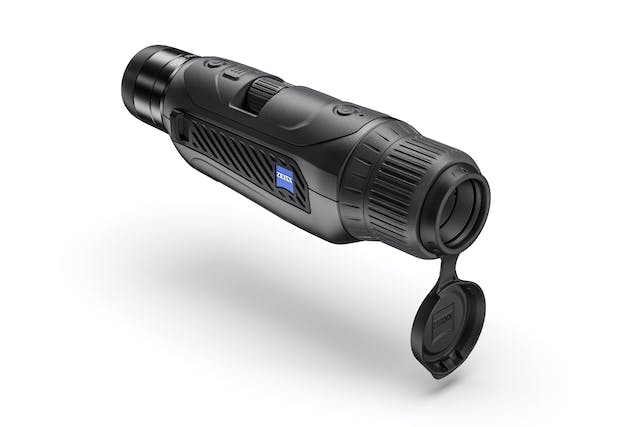

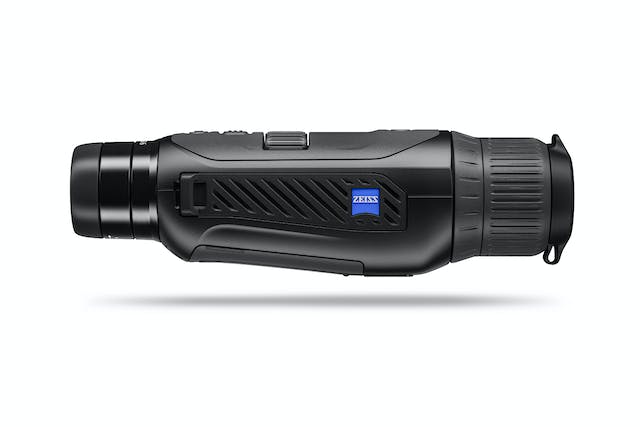

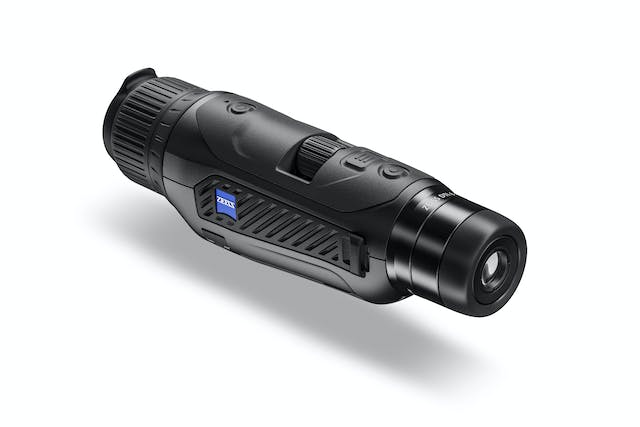

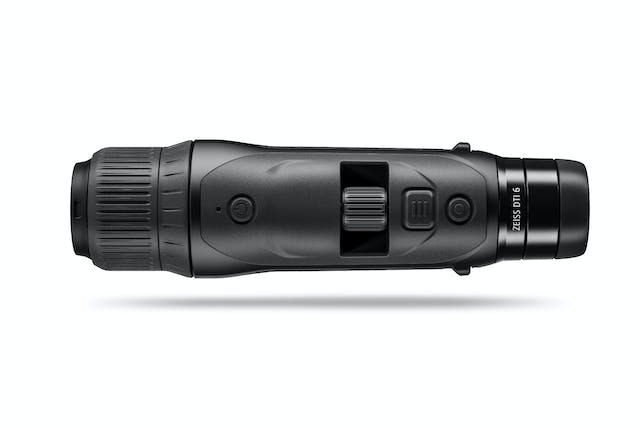

ZEISS DTI 6/20
The ZEISS DTI 6 thermal imaging cameras offer unprecedented image quality that allows you to recognize an exceptional level of detail. When hunting in the dark, you have to recognize every detail in order to reliably identify your target.
The innovative ZEISS Smart Image Processing Pro algorithm (ZSIP Pro) developed by ZEISS, in combination with the 640 × 480 sensor with 12 micron pixel pitch and the 1024 × 768 HD AMOLED display, produces particularly high-contrast and detailed images. Identify individual details even more reliably in order to more quickly and reliably identify your target – for maximum hunting success.
When hunting at night, every detail counts. With the DTI 6 thermal imaging cameras, you won't miss a thing – ZEISS' innovative ZEISS Smart Image Processing (ZSIP Pro) algorithm delivers a sharp, high-contrast thermal image via the 640 × 480 sensor with 12 micron pixel pitch and the 1024 × 768 HD AMOLED display. ZSIP ensures that you can perfectly identify key details under difficult conditions and with low thermal contrast.
The battery supports 6.5 hours of continuous use and can be quickly and easily replaced on the go. Identify individual details even more reliably in order to more quickly and reliably identify your target – for maximum hunting success.
The ZEISS DTI 6/20 is the perfect thermal imaging device for hunting in forested areas. With an impressive field of view of 38 m/100 m, it delivers a perfect overview at short distances, making precise observation, reliable identification, and thus the greatest possible hunting success possible.
Performance
Focal length |
20 mm |
Aperture |
f/1.0 |
Field of view at 100 m (yds) |
38 m (125 ft) |
Objective viewing angle |
22° x 16° |
Range |
1000 m (1093 yd) |
Sensor resolution |
640 x 480 |
Sensor pixel pitch |
12 μm |
NETD value |
≤ 35 mK |
Display resolution |
1024 x 768 |
Display frame rate |
50 Hz |
Display type |
AMOLED |
Optical magnification |
1,5 |
Maximum digital zoom |
10x |
Zoom steps |
0.1x – 1.0x |
Features
Battery type |
Li-Ion |
Battery run time |
6,5 h |
Internal memory |
16 GB |
WLAN |
2.4 Ghz |
Bluetooth |
+ |
Livestream function (Video & Photo) |
+ |
Physical
Operating temperature |
− 20°C | + 50°C (- 4°F | + 122°F) |
Length x Width x Height |
230 x 62 x 68 mm (9.1 x 2.4 x 2.7") |
Weight |
690 g (1.52 lbs) |
