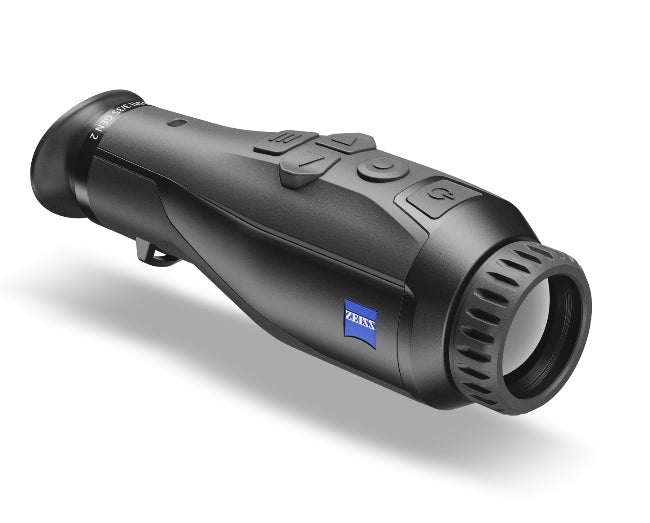

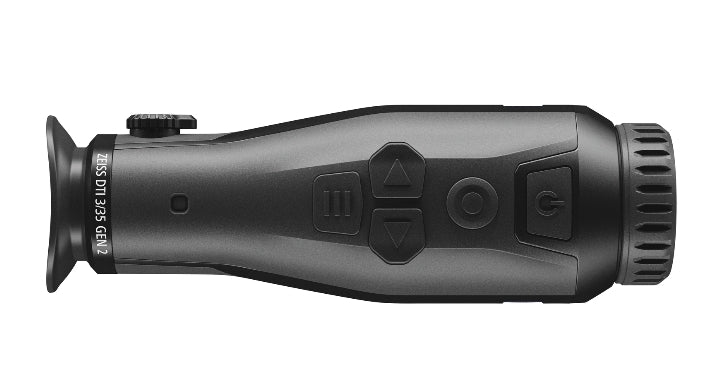

ZEISS DTI 3/35 gen 2
ZEISS DTI 3/35 gen 2
Kunne ikke laste inn hentetilgjengelighet
Ny modell av DTI som kom på markedet i 2020
Mye nyttige oppdatering - bla flere fargepaletter og mer mulighet for "skreddersøm" av bildet, bedre skjerm og et skarpere bilde rett og slett
Sensor 384x288
Linse : 35mm
Skjerm: 1020x768 AMOLED
Pixels størrelse 17um
Grunnforstørrelse 2,4x
Synsfelt på 100m; 19m
Deteksjonsavstand : 1300m
Zoom: 4x (0,5 steg)
Batteritid: 8h
Internlagring : 32GB
Wifi: ja
Vekt 420g
Fra produsentens hjemmeside:
Going hunting at night is a special challenge, as your vital sense of sight is severely impaired and the risk of not being successful or even making a wrong decision is high. The DTI 3 GEN 2 family of thermal imaging cameras are specifically designed for active hunter. Its large field of view combined with a long range makes it the perfect combination product for raised hide hunting and stalking in forested areas – and therefore also the ideal choice for all-rounders who like to take advantage of all the possibilities in their hunting ground.
Whether for observing and tracking or to more quickly and accurately identify game, this high-quality thermal imaging system ensures that hunters can precisely recognize details even at distances of more than 1,300 meters. As a result, the ZEISS DTI 3/35 GEN 2 gives hunters a considerable advantage when stalking at night or when hunting over long distances from a raised hide in a field.
Improved image quality and detailed recognition
New, more powerful hardware enables improved image quality and pushes the boundaries of 384 x 288 sensors even further. The new 1,024 x 786 AMOLED display improves contrast and color reproduction for a more detailed image with less background noise and sharper edges.
Three observation modes for every situation
Different environmental situations require a different device setting. The DTI 3 GEN 2 has three pre-programmed observation modes: universal, detect and fog. Discover mode, for example, highlights heat sources even more while reducing the cold background. This allows you to see animals behind trees and bushes better than before.
Detaljer
Focal length |
35 mm |
Aperture |
f/1.0 |
Field of view at 100 m (yds) |
19 m (62 ft) |
Objective viewing angle |
11° x 8° |
Range |
1300 m (1421 yd) |
Sensor resolution |
384 x 288 |
Sensor pixel pitch |
17 μm |
NETD value |
≤ 35 mK |
Display resolution |
1024 x 768 |
Display frame rate |
50 Hz |
Display type |
AMOLED |
Optical magnification |
2,4 |
Maximum digital zoom |
4x |
Zoom steps |
1.0x – 4.0x |
Features
Battery type |
Li-Ion |
Battery run time |
8 h |
Internal memory |
32 GB |
WLAN |
2.4 Ghz |
Bluetooth |
- |
Livestream function (Video & Photo) |
+ |
Physical
Operating temperature |
− 10°C | + 50°C (+ 14 °F | + 122 °F) |
Length x Width x Height |
193 x 60 x 65 mm (7.6 x 2.4 x 2.6") |
Weight |
420 g (0.92 lbs) |
