Zeiss DTC 3/38
Utrolig kompakt og enkel i bruk i kjent Zeiss kvalitet
Termisk clip-on sikte monteres direkte på ditt kikkertsikte.
Detaljer;
Linse: 38mm
Sensor:384x288
pixcel str:12um
Skjerm: 1280x768
Skjerm: AMOLED
Vekt:650gram
Justering:1,6cm på 100m
Deteksjonsavstand :1 950m
Batteri: 10timers internt
Vi har adapter til denne, ta kontakt med oss direkte for å få korrekt diameter
Ensure that every night hunt is a success – the new ZEISS DTC 3 Thermal Imaging Clip-Ons offer perfectly compatible optics with a large and high-contrast 1024 × 768 HD AMOLED display, intuitive ergonomics, precise and user-friendly zeroing procedure thanks to the app-controlled zeroing assistant, virtually unlimited battery life, and numerous customization options.
Range and accuracy at long distances play a crucial role in night hunting in open terrain. The ZEISS DTC 3/38 covers a larger area, has a field of view of 12.3 meters at 100 meters, and an accurate click value of 1.6 cm at 100 meters – for extremely precise zeroing and thus highly accurate and ethical shots.
Accurate and precise
Top-notch optics and a sharp, clear image are essential when hunting at night in order to be able to safely identify game. Two ZEISS DTC 3 thermal imaging clip-ons offer high-quality germanium lenses that are optimized for thermal radiation, the latest generation of 12-micron sensors, a large HD AMOLED display, and sophisticated image processing to deliver uncompromising detail recognition and maximum precision.
Easy to use

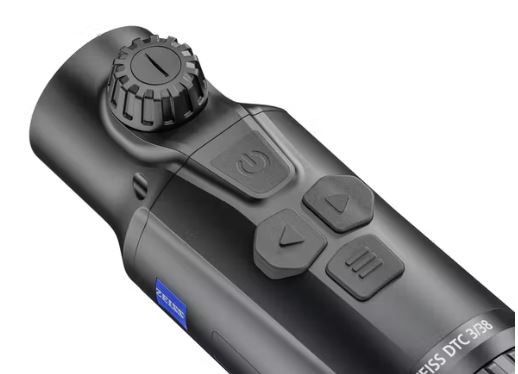

Intuitive handling and the ability to easily interact with the clip-on device are critical to night hunting success. The central location of the focusing turret on the upper side of the clip-on device makes it easier to reach and focus precisely. The ErgoControl operating concept features an intelligent, cross-shaped arrangement of the buttons, making the device even more user-friendly – both for left-handed and right-handed users as well as when wearing gloves.
Digital zeroing assistant
To ensure that the riflescope, thermal imaging clip-on, and rifle are perfectly in tune, it is essential that the set-up is carefully and precisely zeroed. The ZEISS DTC 3 are equipped with a digital zeroing assistant. It is easy to operate via the ZEISS Hunting app and makes the zeroing process faster, easier, and even more accurate.
Numerous customizable settings
The ZEISS DTC 3 can be connected to the ZEISS Hunting App via Bluetooth allowing you to adjust the device settings to your own requirements. Particularly convenient: once the combination of ZEISS DTC 3 and riflescope has been zeroed in, you can store the setting as a profile in the app and easily switch the clip-on from one riflescope to the other. Four possible shooting profiles ensure impressive flexibility.
Detaljer
Focal length |
38 mm |
Aperture |
f/1.0 |
Field of view at 100 m (yds) |
12.3 m (40 ft) |
Objective viewing angle |
7° x 5° |
Range |
1.950 m (2.133 yd) |
Sensor resolution |
384 x 288 |
Sensor pixel pitch |
12 μm |
Display resolution |
1024 x 768 |
Display frame rate |
50 Hz |
Display type |
AMOLED |
Optical magnification |
1,0 |
Maximum digital zoom |
- |
Zoom steps |
- |
Vertical adjustment range at 100 m |
154 cm |
Lateral adjustment range at 100 m |
205 cm |
Adjustment per click at 100 m |
1.6 cm |
Features
Battery type |
Li-Ion |
Battery run time |
10 h |
Internal memory |
- |
WLAN |
- |
Bluetooth |
+ |
Livestream function (Video & Photo) |
- |
Physical
Operating temperature |
− 10°C | + 50°C (+ 14 °F | + 122°F) |
Length x Width x Height |
164 x 60 x 65 mm (6.5 x 2.4 x 2.6") |
Weight |
650 g (22.9 oz) |
