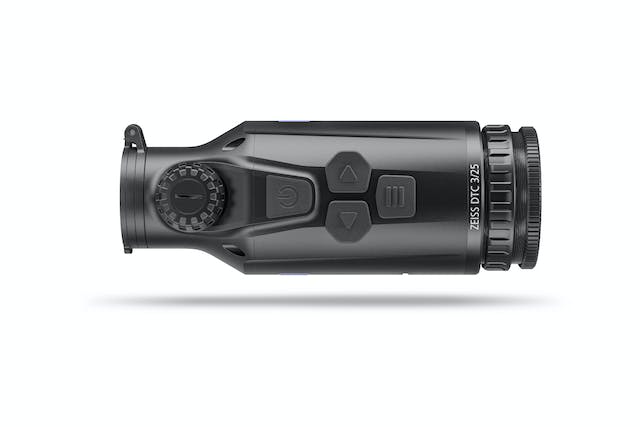

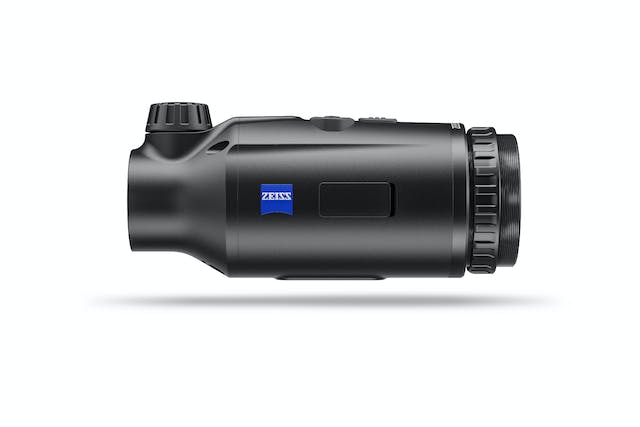

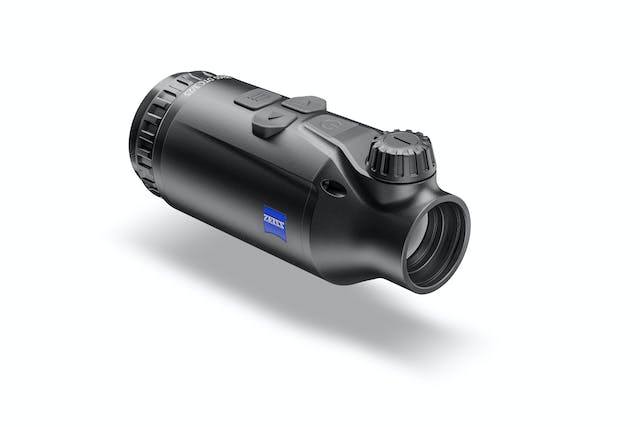

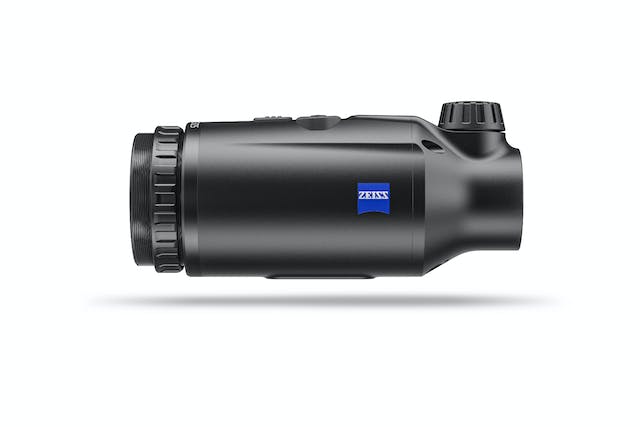

Zeiss DTC 3/25
Zeiss DTC 3/25
Kunne ikke laste inn hentetilgjengelighet
Zeiss DTC 3/25
Utrolig kompakt og enkel i bruk i kjent Zeiss kvalitet
Termisk clip-on sikte monteres direkte på ditt kikkertsikte.
Detaljer;
Linse: 35mm
Sensor:384x288
pixcel str:12um
Skjerm: 1280x768
Skjerm: AMOLED
Vekt:650gram
Justering:2,48cm på 100m
Deteksjonsavstand :1 300m
Batteri: 10timers internt
Vi har adapter til denne, ta kontakt med oss direkte for å få korrekt diameter
Ensure that every night hunt is a success – the new ZEISS DTC 3 Thermal Imaging Clip-Ons offer perfectly compatible optics with a large and high-contrast 1024 × 768 HD AMOLED display, intuitive ergonomics, precise and user-friendly zeroing procedure thanks to the app-controlled zeroing assistant, virtually unlimited battery life, and numerous customization options.
Particularly in the forest, the ZEISS DTC 3/25 – with its large field of view of 18.4 meters at a distance of 100 meters – offers a crucial overview and the ability to easily recognize details. Due to these outstanding optics, when they spot game hunters are perfectly equipped to react quickly, even at short distances and in total darkness.
Accurate and precise
Top-notch optics and a sharp, clear image are essential when hunting at night in order to be able to safely identify game. Two ZEISS DTC 3 thermal imaging clip-ons offer high-quality germanium lenses that are optimized for thermal radiation, the latest generation of 12-micron sensors, a large HD AMOLED display, and sophisticated image processing to deliver uncompromising detail recognition and maximum precision.
Easy to use
Intuitive handling and the ability to easily interact with the clip-on device are critical to night hunting success. The central location of the focusing turret on the upper side of the clip-on device makes it easier to reach and focus precisely. The ErgoControl operating concept features an intelligent, cross-shaped arrangement of the buttons, making the device even more user-friendly – both for left-handed and right-handed users as well as when wearing gloves.
Numerous customizable settings
The ZEISS DTC 3 can be connected to the ZEISS Hunting App via Bluetooth allowing you to adjust the device settings to your own requirements. Particularly convenient: once the combination of ZEISS DTC 3 and riflescope has been zeroed in, you can store the setting as a profile in the app and easily switch the clip-on from one riflescope to the other. Four possible shooting profiles ensure impressive flexibility.
Detaljer
|
Focal length |
25 mm |
|
Aperture |
f/1.0 |
|
Field of view at 100 m (yds) |
18.4 m (60 ft) |
|
Objective viewing angle |
10.5° x 7.9° |
|
Range |
1.300 m (1.422 yd) |
|
Sensor resolution |
384 x 288 |
|
Sensor pixel pitch |
12 μm |
|
Display resolution |
1024 x 768 |
|
Display frame rate |
50 Hz |
|
Display type |
AMOLED |
|
Optical magnification |
1,0 |
|
Maximum digital zoom |
- |
|
Zoom steps |
- |
|
Vertical adjustment range at 100 m |
230 cm |
|
Lateral adjustment range at 100 m |
307 cm |
|
Adjustment per click at 100 m |
2.48 cm |
Features
|
Battery type |
Li-Ion |
|
Battery run time |
10 h |
|
Internal memory |
- |
|
WLAN |
- |
|
Bluetooth |
+ |
|
Livestream function (Video & Photo) |
- |
Physical
|
Operating temperature |
− 10°C | + 50°C (+ 14 °F | + 122°F) |
|
Length x Width x Height |
150 x 60 x 65 mm (5.9 x 2.4 x 2.6") |
|
Weight |
560 g (19.7 oz) |
