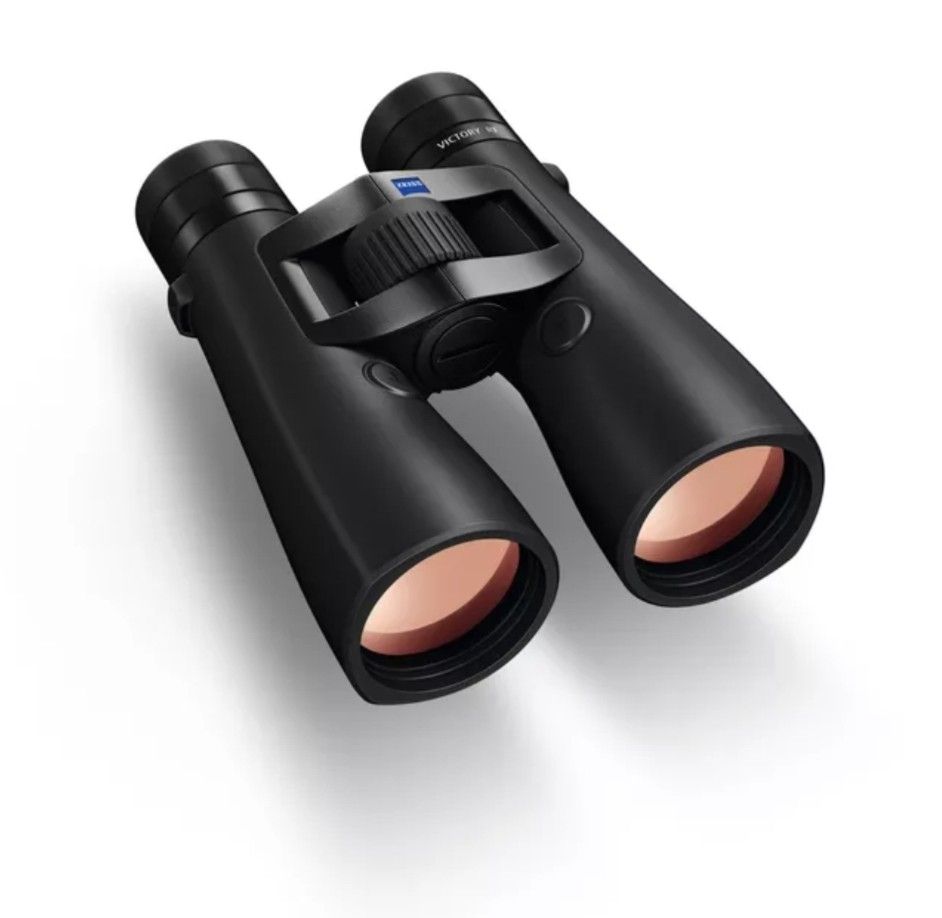

Zeiss Victory 8x54 T* RF
Experienced hunters can always rely on their senses. Nevertheless, with the right equipment, they can go further than this and transform intuitions into certainties.
The Rangefinder System is a laser rangefinder with an integrated real-time ballistics computer. The consideration of all relevant factors and customisation with the aid of the ZEISS Hunting App ensures precisely placed shots at any distance. The RF family offers a choice of four models: the RF 8 × 42 and 10 × 42 for daylight hunting and the RF 8 × 54 and 10 × 54 for hunting into the twilight hours.
Measuring within seconds
The rangefinder determines the precise target distance up to a maximum range of 2,300 metres.
Transfer of personal ballistic data
Storage capability for up to nine personalised ballistic profiles, that can be set up within the ZEISS Hunting App. Thanks to the Bluetooth function it is possible to import personal ballistic data from the ZEISS Hunting App to the Victory RF.
A clear view, whatever the weather
There are always exciting things to be seen in the world of nature – even in wet weather. This is why ZEISS developed LotuTec®. A coating for the lenses of binoculars and spotting scopes that enables a clear and unhindered view in all weather conditions.
Detaljer
Magnification |
8 × |
Effective lens diameter |
54 mm |
Exit pupil diameter |
6.8 mm |
Twilight factor |
20.8 |
Field of view at 1,000 m (yds) |
120 m (360 ft) |
Subjective viewing angle |
54° Ww |
Close focusing distance |
3.5 m (11.5 ft) |
Diopter adjustment range |
− 4.0 | + 4.0 dpt |
Exit pupil distance |
14 mm |
Pupil distance |
58.5 – 76 mm |
Lens type |
FL |
Prism system |
Abbe-König |
Features
LotuTec | Nitrogen filled |
+ | + |
Water resistance |
100 mbar |
Measuring range |
10 – 2,300 m (11 – 2,500 yds ) |
Measuring accuracy |
± 1 – 600 / ± 0.5 % > 600 m (yds) |
Measuring duration |
< 0.3 Sec |
Laser wavelength |
905 nm |
Laser beam divergence |
1.6 × 0.5 nm |
Battery |
1 × 3V Type CR 2 |
Battery life at +20°C |
> 2.500 × |
Physical
Operating temperature |
− 30°C | + 63°C (− 22°F | + 145°F) |
Length |
195 mm (7.7 ") |
Width at an interpupillary distance of 65 mm |
141 mm (5.6 ") |
Weight |
1,095 g (38.6 oz) |
